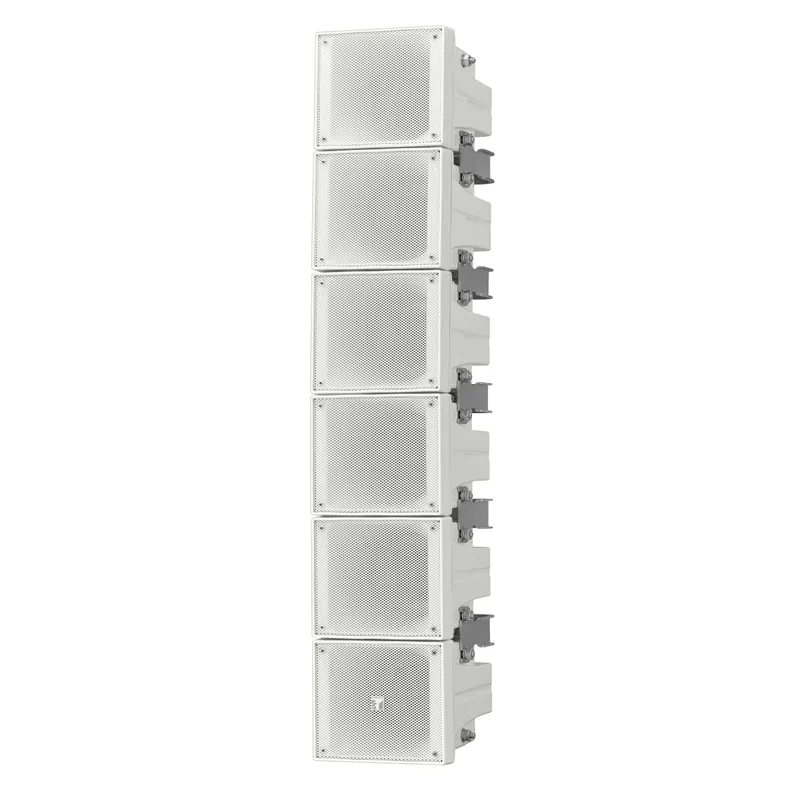

TOA HA-2240EN ลำโพงฮอร์นอาเรย์ Horn Array Speaker 240W

Rated Input

240 W

Rated Impedance

100 V line: 42 Ω (240 W), 83 Ω (120 W)
70 V line: 21 Ω (240 W), 42 Ω (120 W)

Sensitivity

115 dB (1 W, 1 m) (500 Hz - 5 kHz, IEC60268-5)

Max. SPL

138 dB (240 W, 1 m) (500 Hz - 5 kHz, IEC60268-5)

Frequency Response

490 Hz - 4.2 kHz (-10 dB)
280 Hz - 8 kHz (-20 dB)

Speakers Component

Horn speaker unit x 6

IP code

IP66

EN 54-24 specifications

Sensitivity: 91 dB (1 W, 4 m)
Max. SPL: 114 dB (240 W, 4 m)
Coverage Angle ( -6 dB):
Horizontal: Horizontal: 200° (500 Hz), 120° (1 kHz), 65° (2 kHz), 40° (4 kHz)
Vertical: 40° (500 Hz), 20° (1 kHz), 10 ° (2 kHz), 15 ° (4 kHz)
Environmental Type: B (outdoor applications)

IP Code: IP33C

Speaker Cable

4-core cabtyre cord 2 m

Cable Gland

Size: PG 13.5 - 12 ( gray) ... 1

Cable Diameter Range: 12.5 - 6.5 mm (0.49" - 0.26") Size: PG 13.5 - 08 (black) ... 1

Cable Diameter Range: 9 - 4.5 mm (0.35" - 0.18") Two cable glands are factory-installed.

Input Terminal

Ceramic terminal ( 3-pole), can be bridge-connected ···1 Ceramic terminal ( 2-pole) ···1

Thermal fuse is included.

Applicable Wire Size

For Ceramic terminal (3-pole)

Conductor: Solid wire or 7-core wire

No bridge connection: 0.8 - 10 mm ² (AWG 18 - 7) for solid wire, 0.8 - 8 mm ² (AWG 18 - 8) for 7-core wire

Bridge connection: 0.8 - 2.5 mm ² (AWG 18 - 13) for solid wire, 0.8 - 1.5 mm ² (AWG 18 - 15) for 7-core wire

Operating Temperature

-20°c to + 55 °c

Finish

Case: FRP, white (RAL 9016 equivalent), paint

Front grille: Aluminum, white (RAL 9016 equivalent), paint

Bolts: Stainless steel

Dimensions

215 (W) X 1110 (H) X 309 (D) mm (excluding projection)

Weight

33 kg (unit only)

Accessory

Terminal box

Option

Speaker mounting bracket: YS-1100A
